  • Introduction

    Welcome to the pre-check of Esri Nederland for (virtual) training courses, to be taken from your workplace at home or at the office.

    In this pre-check, you will go through a number of steps and tests to see if yuo can successfully follow the training course.

    Perform this pre-check well in advance, but no later than one working day before the start of the training course. If you have any problems, please contact opleiding@esri.nl

    On the day itself the teacher cannot help you wilt your technical problems.


    • Table of Contents

      1. Introduction

      2. Table of Contents

      2. Pre-check checks:

      Step 1: Check the hardware and software requirements
      Step 2: Test Internet speed Internet Browser

      Step 3: Check Webex: used for communication between teacher and student (Webex app or browser)
      Step 4: Check the virtual machine that contains the Esri software (Remote Desktop app)
      Step 5: Check the online learning environment (for people who already have login credentials)

      3. Optional checks:

      Step 6: Check optional method to connect to the remote computer environment (browser)

      4. Frequently asked questions:

      1. Which hardware setup can I use?
      2. What is the lesson schedule / what are the contact hours?
      3. What should I do on the lesson day itself?

      • Step 1: Check hardware and software requirements

        WHAT ARE THE MINIMAL REQUIREMENTS?
        What do you need to take a virtual training course?

          • A computer with an internet connection (preferably > 10mbps)
          • A current internet browser (for example Chrome or Firefox)
          • A microphone (a headset for a desktop computer or the built-in microphone in a laptop)
          • Optional: a camera

        Since the training takes place from your own workplace, you are responsible for the hardware and also certain, non-Esri software.

        WE RECOMMEND IN PARTICULAR:
          • Windows 10 or 8.1 (Pro or Enterprise edition). If you are working with a Mac computer, the at least Mac OSX version 10.11 must be installed. See here for the exact specifications.
          • Linux is not supported for Webex.
          • A wired, high-speed internet connection. WIFI is possible but test in the pre-check (step 3) if the speed is sufficient.
          • We do not recommend using Citrix or Terminal Server to connect. It is often more convenient and stable to use a local PC or private PC.
          • An HTML 5-enabled web browser met cookies, JavaScript ActiveX and plug-ins enabled.
          • The ability and privileges to connect to a virtual machine using Remote Desktop Protocol (RDP) or to install the Remote Desktop app if required.
          • The ability and privileges to install a Webex client for communication.
          • A firewall configuration that provides access to ports 443 and 3389. Proxies must be disabled or configured to allow access. This is usually already the case at home.
          • The PC must be able to transmit sound through a headset or speakers. If you want to be able to communicate with the teacher via the PC, a separate or built-in microphone is required.
          • To carry out the exercises, it is useful to connect your PC or PCs to two screens. A tablet as an extra screen is also a possibility.

        • Step 2: Test Internet speed Internet Browser

          We recommend a wired, high-speed Internet connection. WIFI is possible, but test below if the speed is sufficient.

          • Click here for the test.
          • In the new window, select Netherlands DC 5 (or a connection near you)
            Note!: The test opens in a new window.

          Use of a modern Internet browser that supports HTML5 is required, such as Chrome, Edge, Firefox or Safari.
          Internet Explorer is not supported.

          • Step 3: Check Webex: used for communication between teacher and student

            Virtual classes use Cisko Webex Training for communication between teacher and students.

            It is important that you check whether you can receive and send sound via Webex.

            There are two possible ways to use Webex:

            • Via the Webex app
            • Via Webex in the browser


            Check Webex app

            We recommend installing the Webex app on a local computer (not on a Citrix or Terminal Server).

            • Click here to install the Webex app. This is the preferred option..

            • For this test, use a fictitious name (Student) and email address (student@esri.nl), as shown in the image below:

            WebExTest

            A web page opens with two links at the bottom that allow you to connect to Webex.

            • If you do not have the Cisco app yet, click the link Download it now at the bottom of the webpage and install the app.



              If you have already installed the Cisco app, it will open automatically.

              Note  If you cannot install the Cisco app, see the description below Optionally: Check Webex browser environment.

            • In the Cisco Webex Meetings app, click the button Join Meeting

            • You will be notified that the Host is not present. Close this message.

            • Click the three dots at the bottom and then select Speaker, microphone and camera.


            • In the window that appears, click klik Test under Speaker and check if you hear the sound.

            • Speak and check with Microphone if you see the dashes reacting.

            • Optionally, check your camera.

            • Close the window and exit the meeting.

            • Before the training course, you will receive an email with a link for the actual training session. You will then login with your own name and mail address.

            If you have successfully completed this check, go to the next step.

            If you were unable to complete this step successfully, continue below and use Webex in a browser..

            Optionally: Check Webex browser environment


            Perform the following steps only if you have not been able to install a Webex app..

            • Click here to check Webex.

            • For this test, use a fictitious name (Student) and email address (student@esri.nl), as in the image below:

              WebExTest

              3. Click the Join from your browser link at the bottom of the browser screen.

              WebExTest

            • A notification appears at the top left of the browser, asking for access to your microphone.
              Select Allow.

            • Click the Join meeting button.

            • Click the button with three dots at the bottom of the screen and select Health Checker to check if your connection is sufficient..


            • Again, click the button with the three dots at the bottom of the screen and select Speaker, microphone, and camera.

            • Speak and check with  Microphone if you see the dashed reacting. Unfortunately, you cannot test the speaker environment yet.

            • Optionally, check your camera.

            • Close the window and exit the meeting.

            • Before the training course, you will receive an email with a link for the actual training session. You will then login with your own name and mail address

            What if neither method works?


            You can also install the Webex app on a tablet. The disadvantage may be that it is difficult to see the demos properly due to the limited screen size. Furthermore, you cannot communicate with the teacher using the emoticons.

            NOTE1  A smartphone is too small to properly follow demos. It may however be used as a second connection for receiving and sending sound. In that case the teacher can invite you with a second (often private) email address..
            NOTE 2 When you add appliances, do remember to have enough power points available for the whole day.


            If you do not pass the test above, please contact opleidingen@esri.nl as soon as possible - but no later than 1 day before the training..

            Optional

            View the operation of Webex below:.






            • Step 4: Check the virtual machine that contains the Esri software (recommended)

              In this step, you test whether you can connect to a virtual test machine. The day before the training you will receive an email with which you can connect to your actual machine. That IP-address will therefore be different from the test address you use below.

              The connection method differs per operating system. Follow the steps for our operating system.

              Check the operating system

              To see which operating system you have:

              • Open tge Windows Explorer.

              • Right-click on This PC.

              • Select Properties.

                The operating system is displayed at Windows edition.

              Windows 10 Enterprise computer

              The Remote Desktop app is already present on most Windows 10 computers.

              • Use the Start-menu or the Taskbar to search for the Remote Desktop Connection app and click on the app to open it.



                Note
                If you do not have a Remote Desktop Connection app, you probably need to install it first. You can download the app from: https://www.microsoft.com/store/productId/9WZDNCRFJ3PS)
                See the description for the step Windows 10 Pro computer below on how to install the app.

              • Note
                If you are unable to install the Remote Desktop Connection,  go to the section Optional checks (step 6) to connect via the browser.

              • Enter the computer IP-address 13.66.29.230 in the RDC app and click Connect.
                Note This is the IP-address of a test machine.

              • In the Windows security dialog box, select More Choices > Use a different account and sign in with the following information:

                • Username: student
                • Password: Training12345 (password is case sensitive)

              • You will see a confirmation message on the remote desktop after the connection is successful. Click Yes

              • You will now see a confirmation screen.

              • You have now successfully connected to a remote test machine. You can close this session (Close button X).

              If you were unable to use the Remote Desktop Connection app, go to the section Optional checks (
              step 6) to connect using a browser.

              If you were successful, check out the Frequently Asked Questions section for more information about possible hardware setups, the training schedule and what to de before starting on the first day of the class itself. The procedure is slightly different from the one described above, as you will have to look up the IP-address used for the training.

              Windows 10 Pro computer
              Windows 10 Pro does not contain the remote desktop app by default. You can download and install the app fromhttps://www.microsoft.com/store/productId/9WZDNCRFJ3PS).

              • Log in with your Windows-account, if prompted.

              • Download the Microsoft Remote Desktop app.

              • Click the Add button.

              • Click Desktop.

              • Under PC Name, enter the IP address 13.66.29.230 and click Save.
                A saved desktop appears in the app.

                Note This is the connection to a test machine.

              • Click Save.

              • Double click on the saved desktop to go tho this remote computer.

              • Log in with the following information:
                • Username: student
                • Password: Training12345 (password is case sensitive)
              • Accept the certificate and click Connect.

              • You will see a confirmation screen.

              • You have now successfully connected to the remote test machine. You can close this session (button and then the X button).

              • You can delete the saved desktop verwijderen, because the actual training itself uses a different IP address (and then Remove).

              If you were unable to use the Microsoft Remote Desktop app, go to the section Optional checks (step 6) to connect using a browser.

              If you were successful, check out the Frequently Asked Questions section for more information about possible hardware setups, the training schedule and what to de before starting on the first day of the class itself. The procedure is slightly different from the one described above, as you will have to look up the IP-address used for the training.

              Windows 10 Home Edition computer
              With Windows 10 Home Edition there is no Remote Desktop option. Go directly to the description at the section Optional checks (step 6) to connect using a browser.

              Apple computer
              Apple has a Microsoft Remote Destkop app available for download from the Apple store. We recommend installing the app on a local computer.

              • Download the Microsoft Remote Desktop app.

              • Open the app and follow steps as described for the Windows 10 Pro computer.
                Optionally, watch the video below.

              If you were successful, check out the Frequently Asked Questions section for more information about possible hardware setups, the training schedule and what to de before starting on the first day of the class itself. The procedure is slightly different from the one described above, as you will have to look up the IP-address used for the training.

              Google Chromebook

              Click here for an explanation.

              If you were successful, check out the Frequently Asked Questions section for more information about possible hardware setups, the training schedule and what to de before starting on the first day of the class itself. The procedure is slightly different from the one described above, as you will have to look up the IP-address used for the training.


              • Step 5: Check the online learning environment (for people who already have login credentials)

                Op the day the training course starts, you will have access to the training material in the Online Learning Environment of Esri Nederland. You may log in earlier, but the material will then not be visible. At the moment you are also in this learning environment, but as a guest.

                If you have previously followed a training course, you can check whether you can still log in to this environment. If not, you can request a reset of your password so that you can log in immediately on the day of the training.

                Note
                The training material is visible from the first day of the training and will remail available for one year.

                Log in to the learning environment (https://mijnopleiding.esri.nl)

                • Your user name is the email address you registered with (often your work email).

                • The password is a password you created yourself, at least 8 characters long with a capital letter and a number.

                • Have you forgotten your password, reset it via the green link below the field where you have to enter the password.
                  Pay Attention! This mail often ends up in your Smap mailbox.


                • It this doesn't work, ask the teacher for help at the beginning of the first training. He or she can reset your password or request a reset via Esri Nederland's customer service (opleidingen@esri.nl). Do the latter at least one day before the start of the training.

                Optional

              • Step 6: Check optional method to connect to the remote computer environment (browser)

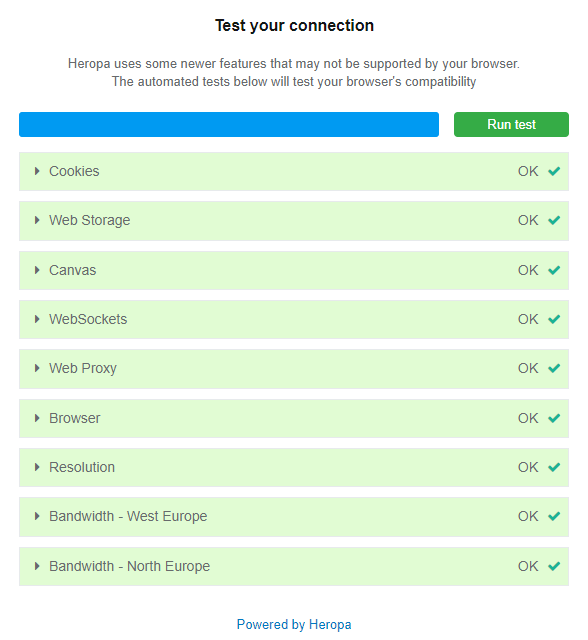

                Connecting to a virtual machine through a browser is usually the easiest method, but it is also the slowest and least stable way. We recommend to use this method only if you cannot use a Remote Desktop application.

                The browser you use must support HTML5. This is the case in current versions of modern browsers such as Chrome, Edge, Firefox and Safari. Internet Explorer is not supported.

                In this step, you will test whether you can connect to a virtual test machine. Before the training you will receive an email from the trainer. At the bottom of this mail there is a button Go to event which you use to can connect to your actual machine. The sever ID and authorization code will therefore be different from the one you use below.

                  • Server ID: 79F9-E6D3-11C1-342C
                  • Authorization code: QEIGMU

                • You will see a confirmation message on the remote desktop when the connection has been succesful.

                • Click X (Disconnect) in the remote desktop toolbar to close the session.

                Check out the Frequently Asked Questions section for more information about possible hardware setups, the training schedule and what to de before starting on the first day of the class itself. The procedure is slightly different from the one described above, as you will have to look up the IP-address used for the training.

                • Which hardware setup can I use?

                  During the training you use your own hardware. What exactly do you need?

                  You will use the following applications during the training:

                  • the Online Learning Environment (browser)
                  • the Webex environment (Webex app or browser)
                  • the Virtuele machine with Esri software (Remote desktop app or browser)

                  Therefore, it is useful to have at least two screens.

                  Figure 1 below shows an example configuration. In this configuration, two monitors are connected to a PC. The left screen displays the Online learning environment (https://mijnopleiding.esri.nl/) and the Webex environment. The right screen displays the virtual machine.


                  This is especially useful when doing the exercises. On the left you have the exercise document (PDF) in which the exercises are written out and on the right you have the ESRI software at your disposal. In any case, listening to the videos (via the online learning environment or listening to the teacher (during the virtual classroom courses with Webex) takes place on the local computer (NOT in the virtual environment).

                  Ideale opstelling voor Virtuele Training

                  Figure 1

                  Another possible setup is shown in figure 2 below. This configuration consists of a tablet and a laptop. Both are connected to the Internet but not to each other.

                  The table (in this example an Ipad) displays the Online Learning environment (https://mijnopleiding.esri.nl/) and the Webex environment. The laptop displays the virtual machine. The disadvantage of this setup is that demos of a teacher are difficult to see and that you cannot cut and paste text from the exercise to the virtual machine. In general, that is not a problem. You sometimes have to type a little more text. In this setip the Webex environment could also be displayed on the laptop.

                  Laptop & Ipad

                  Figure 2

                  Below a general checklist:

                  • Find a quiet place
                  • Use two screens (e.g. laptop and tablet)
                  • Use headphones
                  • Use a microphone (e.g. a headset for a desktop/laptop or of the built-in microphone on a laptop)
                  • Keep your cell phone handy with the number of the teacher in case of any problems
                  • What is the lesson schedule / What are the contact hours

                    The schedule for training courses is:

                    09:30 - 12:30

                    12:30 - 13:30 Lunch break

                    13:30 - 16:30

                    For virtual classroom training: the teacher may deviate from this schedule.
                    For virtual e-learning the above times are the times you can contact the teacher.

                    • What should I do on the lesson day itself?

                      Before the training you will receive a number of emails from which you can start the applications you need:

                      • An email with an invitation for the Webex training session (sender: messenger@webex.com).
                      • An email with credentials for the virtual machine (sender: trainer)

                      What should I do on the training day itself?


                      Half an hour before the start of the training (9.00 am), you must do the following:

                      • Step 1: Start the Webex-sessie (Webex app or Browser), from the mail
                      • Step 2: Start the virtuele machine (Remote Desktop app or Browser), from the mail (button Go to event at the bottom of this mail).
                      • Step 3: Start the online leeromgeving (https://mijnopleiding.esri.nl)

                      If necessary, see the steps below for a futher explanation.

                      Step 1. Start Webex-session

                      Connect to the Webex-session:

                      • In the mail from Webex, click the link in this mail to attend the session.


                      • Enter your name (the email address and password have already been entered) and click Join Now (for use of the app) or Join by browser (for use of the browser), depending on the option you used during the Pre-check.



                      You cannot participate until the teacher has started the meeting.

                      Step 2a. Method 1: Start virtual machine via the app

                      Apps function differently in Windows 10 Enterprise and Windows 10 Pro. Choose your operating system and follow the steps below.

                      Windows 10 Enterprise: Remote Desktop Connection app

                      This section describes how to make a connection on a Windows 10 Enterprise computer. Starting the virtual machine from the Remote Desktop app is preferred, because it works the fastest and is the most stable. If this does not work on your machine, go to the "2b. Method 2: Start Virtual computer (Browser)"step below.

                      • In your email invitation, click the Go to event button at the bottom of this mail or use the link at the bottom of the mail. These options already contain your own access code.



                      • Check the other fields.
                      • Click the Log in button.
                        If your session is not yet active, a message appears:



                        The session is active 30 minutes before the start of the training.

                      • Click the link Connect with desktop client to find the IP-address you will use.



                      • In the expanded screen that appears, you can find the IP address of the virtual machine on the right:


                      • Copy this address (CTRL+C).

                      • Open the Remote Desktop app and paste this IP-adres in the field Computer (CTRL+V).

                      • Click the Connect button.

                      • You will now be asked for a name and password.

                        Click the More choices button.

                      • Select Use a different account.

                      • Enter the following information:
                        User name: student
                        Password: Training12345

                        Note: the password is case sensitive.

                      • Click OK.
                        In the Certificate screen, select
                        Yes

                        You are now in the remote computer.

                      • If your computer is locked, click the Ctrl+Alt+Del button at the top of the screen and fill in the password Training12345 to unlock the computer.

                      When you have connected to the virtual machine, you are ready to start using the applications you want. It sometimes takes some time for the ArcMap license to be activated in the session. Start ArcGIS Pro can also take some time the first time.

                      At the end of the day, click the X Disconnect button to exit the session.

                      Windows 10 Pro: Remote Desktop app

                      This section describes how to make a connection on a Windows 10 Pro computer. Starting the virtual machine from the Remote Desktop app is preferred, because it works the fastest and is the most stable. If this does not work on your machine, go the"2b. Method 2: Start Virtual computer (Browser)"step below.

                      • In your email invitation, click the Go to event button at the bottom of this mail or use the link at the bottom of the mail. These options already contain your own access code.




                      • Check the other fields.

                      • Click the Log in button.
                        If your session is not yet active, a message appears:



                        The session is active 30 minutes before the start of the training.

                      • Click the link Connect with desktop client to find the IP-address you will use.



                      • In the expanded screen that appears, you can find the IP address of the virtual machine on the right:



                      • Copy this address (CTRL+C).

                      • Open the Remote Desktop app.

                      • Click the Add button.

                      • Select Desktop.

                      • Paste the IP-address (CTRL+V) in the field PC Name.

                      • Click Save.

                      • Double click the saved desktop.

                      • Enter the following information:
                        User name: student
                        Password: Training12345

                        Note: the password is case sensitive.

                      • Accept the certificate and click Connect.
                        You are now in the remote computer.

                      • If your computer is locked, click the Ctrl+Alt+Del button at the top of the screen and fill in the password Training12345 to unlock the computer.

                      When you have connected to the virtual machine, you are ready to start using the applications you want. It sometimes takes some time for the ArcMap license to be activated in the session. Start ArcGIS Pro can also take some time the first time.

                      At the end of the day, click the X Disconnect button to exit the session.

                      2b. Method 2: Start virtual machine (Browser)

                      This section how you can connect to the virtual machine using the browser, when you were unabel to install an app.

                      • In your email invitation, click the Go to event button at the bottom of this mail or use the link at the bottom of the mail. These options already contain your own access code.




                      • Check the other fields.
                      • Click the Log in button.
                        If your session is not yet active, a message appears:




                        The session is active 30 minutes before the start of the training.

                      • Click the Connect button.


                      • A separate tab appears, with the URL: https://matchmaker.readytech.com/server/<<your access code>>/<<unique number>>/view

                      • The remote machine is visible within this browser tab. At first the compyter may be locked.

                      • The toolbar at the top allows you to communicate with the remote machine.



                      • If necessary, click the dropdown arrow next to the Keys button and select Send Ctrl + Alt + Del to unlock the computer.


                      • Enter the password Training12345
                        You are ready to start your application(s).

                      When you have connected to the virtual machine, you are ready to start using the applications you want. It sometimes takes some time for the ArcMap license to be activated in the session. Start ArcGIS Pro can also take some time the first time.

                      • At the end of the day, click the X Disconnect button to exit this session.

                      NOTE
                      When you unexpectedly get the following screen:

                      • Close this browser tab and start the session agian via the button Go to event or the link, both in the invitation mail.


                      3. Log into the learning enviroment

                      For login details for the Online Learning Environment (containig de data, theory powerpoints en exercises), the following:

                      • Select English at the top left of the page.


                      • If this is your first time logging into this environment, please use:
                          • Username <your company email address>
                          • Password = Student01
                            Note: Thit is a capital letter “S” and at the end te numbers zero and one.
                          • Change your password when asked. Your password must be at least 8 characters long, contain at least 1 number, at least 1 lower case letter and at least 1 upper case letter.

                      • For students who already have a login, log in with the credentials that you checked in thePre-check.
